 Projekt: SeaTalk NMEA Bridge128SD with repeater display, USB, SD

Boat electronics  -  Yachtelektronikfwallenwein schreibt

This is the latest version of our SeaTalk(R) Nmea bridges and repeaters.

The SeaTalk <-> NMEA Bridge is a stand alone single chip computer, that translates information between SeaTalk and NMEA. It can read & write NMEA and read & write SeaTalk data.
  • It translates SeaTalk data into NMEA data, so that you have depth, wind speed and direction, water temerature, position, rudder angel, speed etc. available on your board pc.
  • It translates NMEA data into SeaTalk, so that you can, for example, control the autopilot from the navigation software on the board pc.
  • The seatalk bridge comes with housing and LCD display.
    This LCD Display acts as an additional display for relevant navigation data from Seatalk and NMEA devices right on the chart table.
  • A keyboard allows easy switching between display pages and setting configuration.
  • Built-In autopilot remote control. Control your autopilot directy. ( +10,+1,-1,-10,Auto,Standby,Track)
Overview
SeaTalk is registered trademark of Raymarine Ltd. Raymarine

You can get the SeaTalkNmeaBridge128SD in our Webshop

Sie können die SeaTalk Nmea Bridge128SD in unserem Webshop finden




back side

Power, SeaTalk , RS232, NMEA , USB

  • detachable terminals for easy wiring.
  • 1 * SeaTalk Port ( read & write SeaTalk ), galvanic isolated
  • 1 * RS232 Port ( read & write NMEA data )
  • 1 * NMEA Port ( read & write NMEA data ), IN-Port galvanic isolated
  • 1 * USB Port ( read & write NMEA data )

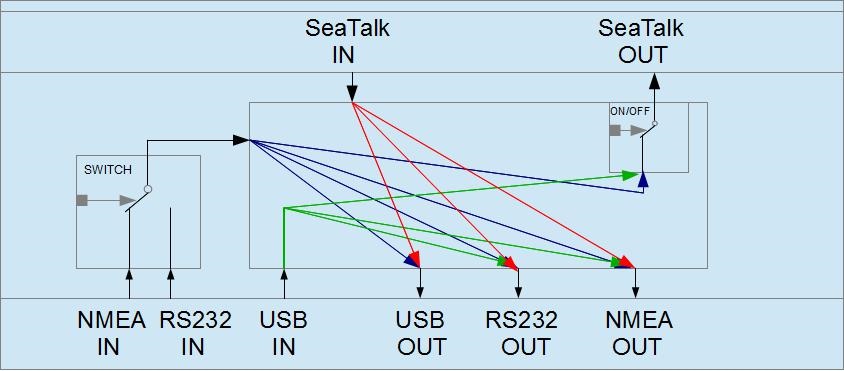

Data flow

The bridge reads NMEA Data from from the USB port and also from either NMEA or RS232 port.
It sends NMEA Data to the NMEA port, the RS232 port and the USB port.
It receives SeaTalk data from the SeaTalk port, translates this data into NMEA sentences which are sent to NMEA,RS232 and USB.
Received NMEA data are translated into SeaTalk data and sent to the SeaTalk port.
(Sending SeaTalk can be switched off )


Data flow overview

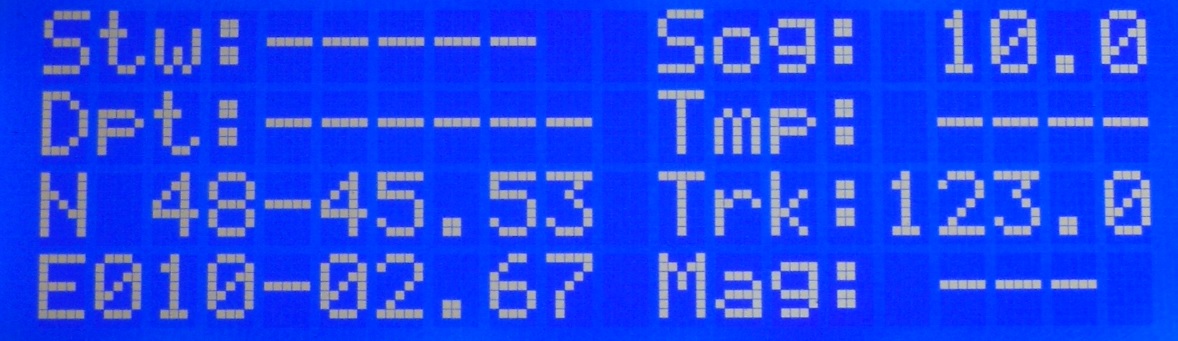

Both NMEA and SeaTalk data are shown on the display.









 Stw
Speed through water
 XTE
Cross track error
 SogSpeed over ground
 Brg
Bearing to waypoint
 Dpt
Depth DstDistance to waypoint
 TmpTermperature
 TrkTrack ( course over ground)
 N/EGPS postition

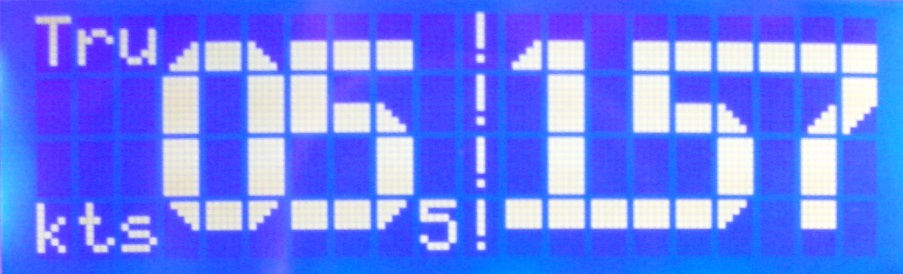

 TruDisplay TURE wind data
 TrkTrack ( course over ground) AppDisplay apparent winddata
 MagCourse magnetic

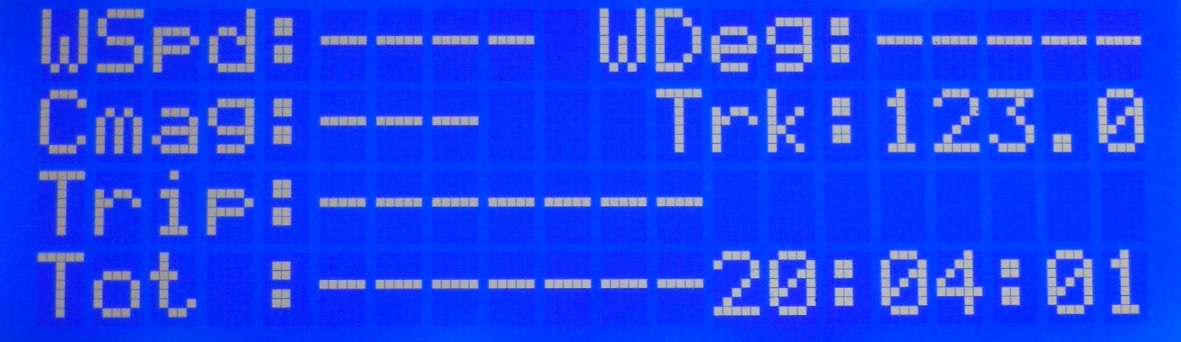

 WSpdWind speed

 WDegWind direction

 CmagCourse magnetic
 TripTrip milleage

 Tot
Total milleage

 UTC time

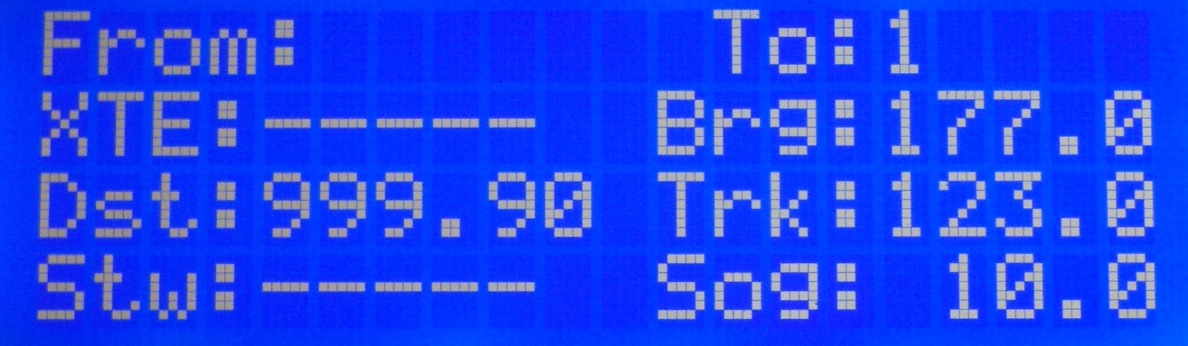

 FromRoute waypoint name "From"

 ToRoute waypoint name "going to"





























Technical data
Width
141.5 mm
Height 75.0 mm
Depth 37.5 mm
Weight 165.0 grams
Clearance hole
Width
104 mm
Clearance hole
Height
66 mm
 Minimum cable clearance behind panel40 mm
 Supply voltage8 to 30 Volt DC
 Current consumption60 mA idle,
50 mA backlighting off,
100 mA peak (12 Volt)


Configuration

Board configuration can be set directly on the board.
A special LCD display page allows changes of configuration settings stand alone, without computer.

If you prefere to change configuration settings on a PC, we have
a configuration and monitoring software available for download on our webpage.



This software is also used for firmware updates and SeaTalk Network monitoring.


You can get the SeaTalkNmeaBridge128SD in our Webshop

Sie können die SeaTalk Nmea Bridge128SD in unserem Webshop finden




:



Project Files
DateiGrösseBeschreibung
config.jpg176510 Bytes ---
ManualBridge128SDV3.01.pdf1395692 BytesManual Bridge 128SD Sw Version 3.01
ManualBridge128SDV3.10.pdf1839550 Bytes ---
