 Projekt: Seatalk to RS232 converter

Boat electronics  -  Yachtelektronikfwallenwein schreibt

This is a small circuit, that converts SeaTalk signal levels to RS232 signal levels. It allows you to connect SeaTalk Instruments to PC or Notebook.


stconverterkl_220
click on picture to get a bigger picture




This converter - or let's better say levelshifter - does not do any software conversion between the PC and the SeaTalk devices.
You need to have a software on your pc, that "speaks" SeaTalk.

The circuit it quite easy.
Click to get a bigger picture



The Idea and circuit diagram is from the very good SeaTalk pages of Thomas Knauf.
( Link to Webpage of Thomas Knauf )
I just added another resistor to protect the transistor.
Thomas Kanuf also has two small programms on his pages.
One for reading SeaTalk and one to writing SeaTalk sentences.

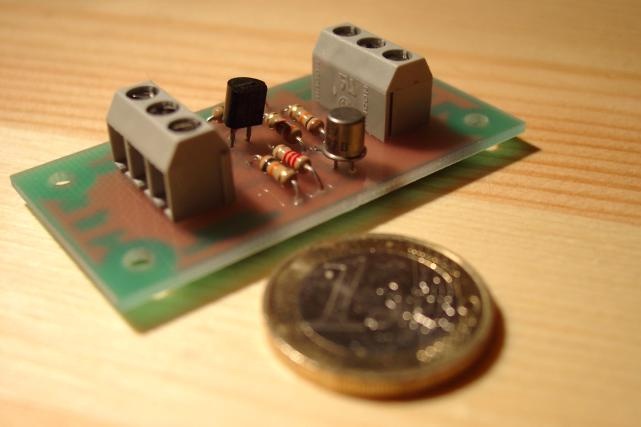

I had made a few printed circuit boards for this little gadget.
stconv2kl_200
click on picture to get a bigger picture

All PCB's are gone. I won't make any new PCB's for this. PCB's are just too expensive for such an easy device.
It's just 6 resitors and two transistors.
This few parts can easily be mounted on a Stripboard .
The PCB would cost something arround 6 Euro.

You'l find attached the circuit diagramms, the Eagle files for the PCB and PCB pictures.



:



Project Files
DateiGrösseBeschreibung
STConverter.brd11945 Bytesprinted circuit board file for Eagle
STConverter.sch43396 Bytescircuit diagramm file for Eagle
STConverterCircuit.jpg34676 Bytescircuit diagramm file as JPG picture
STConverterPCB.jpg79064 Bytesprinted circuit board as JPG picture
